Our water plant control system has a unique
and very effective control algorithm for VFD powered pumps as well as an innovative
touchscreen interface.
MAIN SCREEN
A trend screen captures real-time data in a
format lets you know exactly what is or was happening. In addition to the typical data of
flows and pressure, the chart also shows which pumps were on at a particular time.
REAL-TIME TREND SCREEN
Data is collected to an MSAccess database and
therefore can be recalled at any time. This screen allows you to pick a start and end date
from a virtual calendar pop-up. A similar screen also prints out once per day
automatically on a standard windows compatible printer. The touchscreen interface is
driven from a compact industrial PC, however operations are still controlled by PLC.
Alarms are also collected for historical data.
HISTORICAL TREND CHART

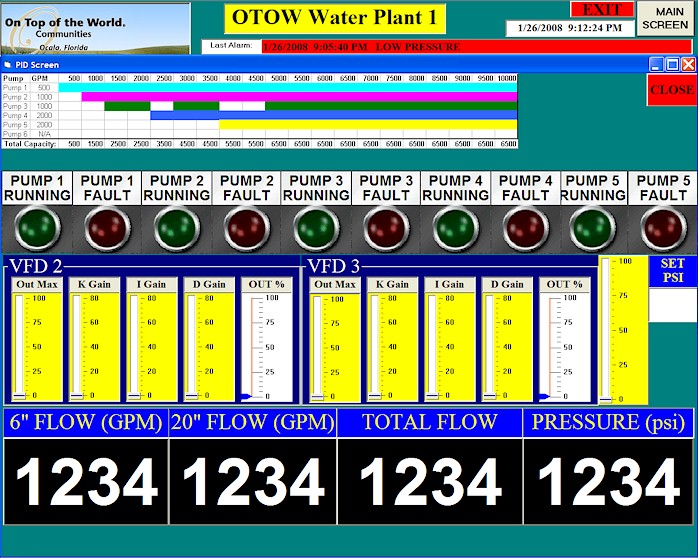

The PID Setup screen is typically set-it and
forget-it, however should you ever have an issue that requires an adjustment, the password
protected screen allows you to dial in your settings.
PID SETUP SCREEN
Because the system has a PC, remote
monitoring and control is easily provided through PCAnywhere.
We can customize this system in every way. Call us to discuss your requirements
today!
